H-type cage of layer animal husbandry equipment
| item | 3-tier 5-door | 3-tier 4-door | 4-tier 5-door | 4-tier 4-door |
| set capacity | 120 | 144 | 160 | 192 |
| cell capacity | 4 | 6 | 4 | 6 |
| weight | 54kg | 54kg | 72kg | 72kg |
| cage size | 1950*500*430mm | 1950*500*430mm | 1950*500*430mm | 1950*500*430mm |
| cell size | 390*500*430mm | 487.5*500*430mm | 390*500*430mm | 487.5*500*430mm |
A-type cage of layer animal husbandry equipment
| Specifications of A type cage | item | 3-tier 5-door | 3-tier 4-door | 4-tier 5-door | 4-tier 4-door |
| set capacity | 90 | 96 | 120 | 128 |
| cell capacity | 3 | 4 | 3 | 4 |
| weight | 45 | 45 | 60 | 60 |
| cage size | 1950*350*380mm | 1950*350*380mm | 1950*350*380mm | 1950*350*380mm |
| cell size | 390*350*380mm | 487.5*350*380mm | 390*350*430mm | 487.5*350*380mm |

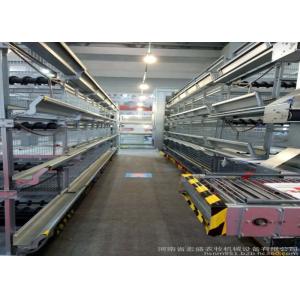

AUTOMATIC EGG COLLETCTION
Layer chicken cage is rearing egg laying chicken, after pullet
growing up to 12 weeks or 16 weeks transport them to layer cage.
Its biggest advantage is increasing egg production to 98%, Which is
easy to handle chicken waste and reduce disease transmission.
1. Simple structure and steady performance
2. Feeding equality,and saving energy and workload
3. Durability and reliability
4. Reducing the rate of broken eggs
5. Increasing farming efficiency
6. Easy to use and manage
7. Rational structure and low energy consumption
SCRAPER TYPE MANURE REMOVAL
(1) Components:driving system, scraper, angle pulley, stroke
limitation, control panel.
(2) Working for 2 rows or 3 rows one time
Conveyor Belt Type Manure Removal
Cleaning belt made by quality PE, Corrosion resistance, good low
temperature resistance, resistance to friction. Power is 3KW, belt
transporting speed 10- 12m/min, width is as house width, the length
is up to 120m
CHICKEN LAYER CAGE ACCESSORIES
1. Nipple drinker: warranty>10 years, Stainless steel ball
inside nipple drinker
2. Feed trough: loading capacity>60kg/pc, White PVC material,
adults can walking on it and not easy to be damaged during
transport.
3.Steel cage frame: warranty>20 years, Iron bar, Galvanization
surface treatment, U type frame, galvanized.
4.Water pressure controlling system: Including the terminal device
and water-split device,supply average water to the pipe
